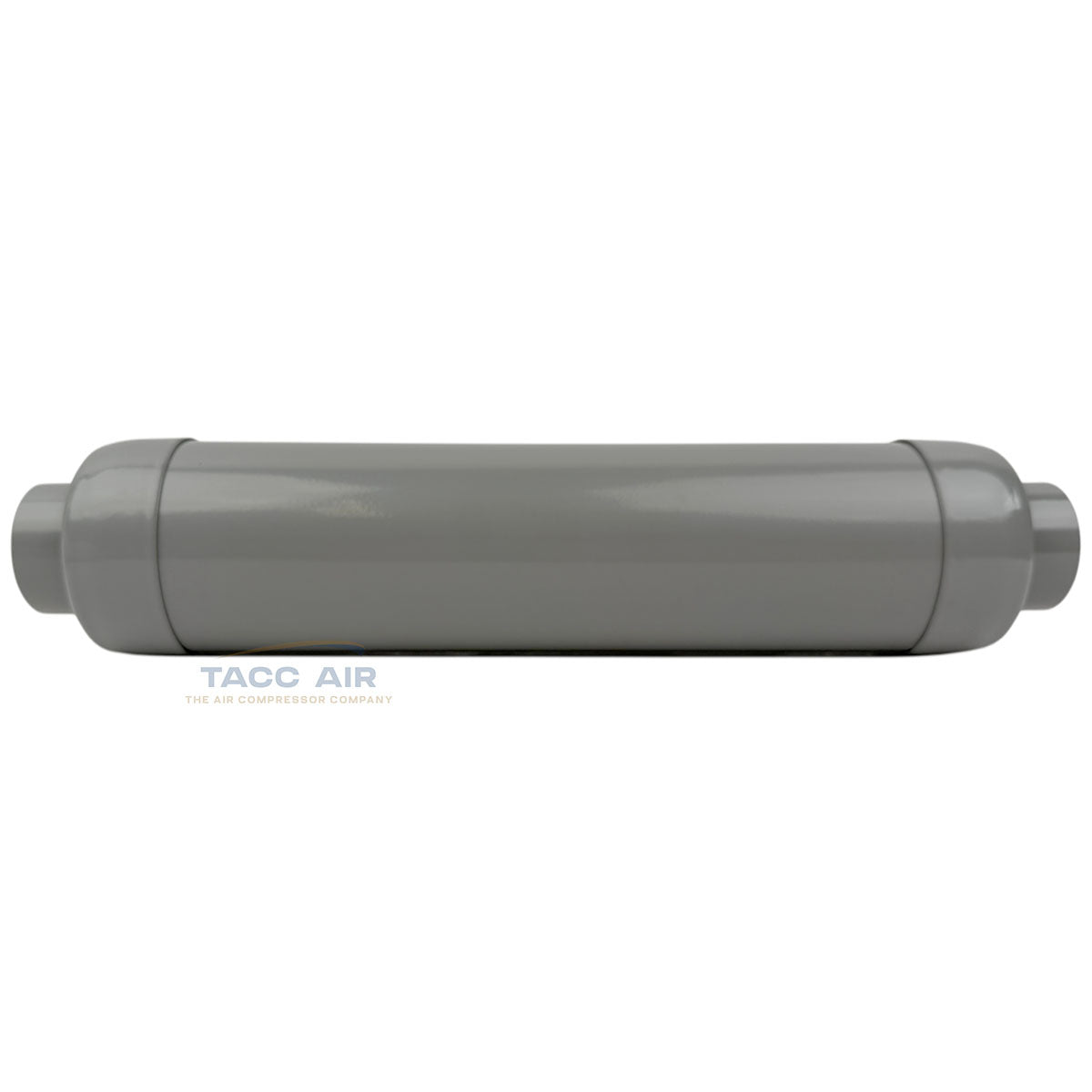

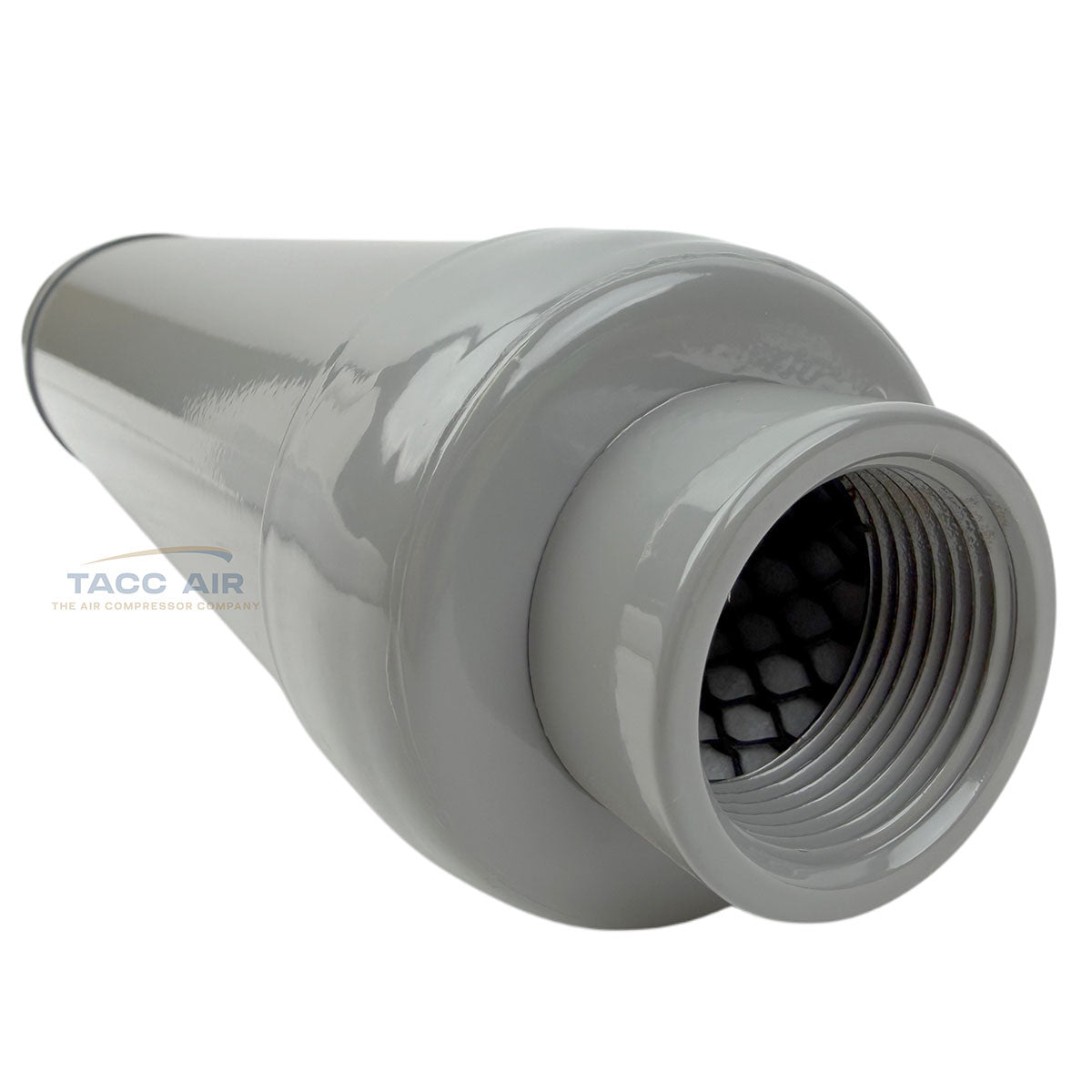

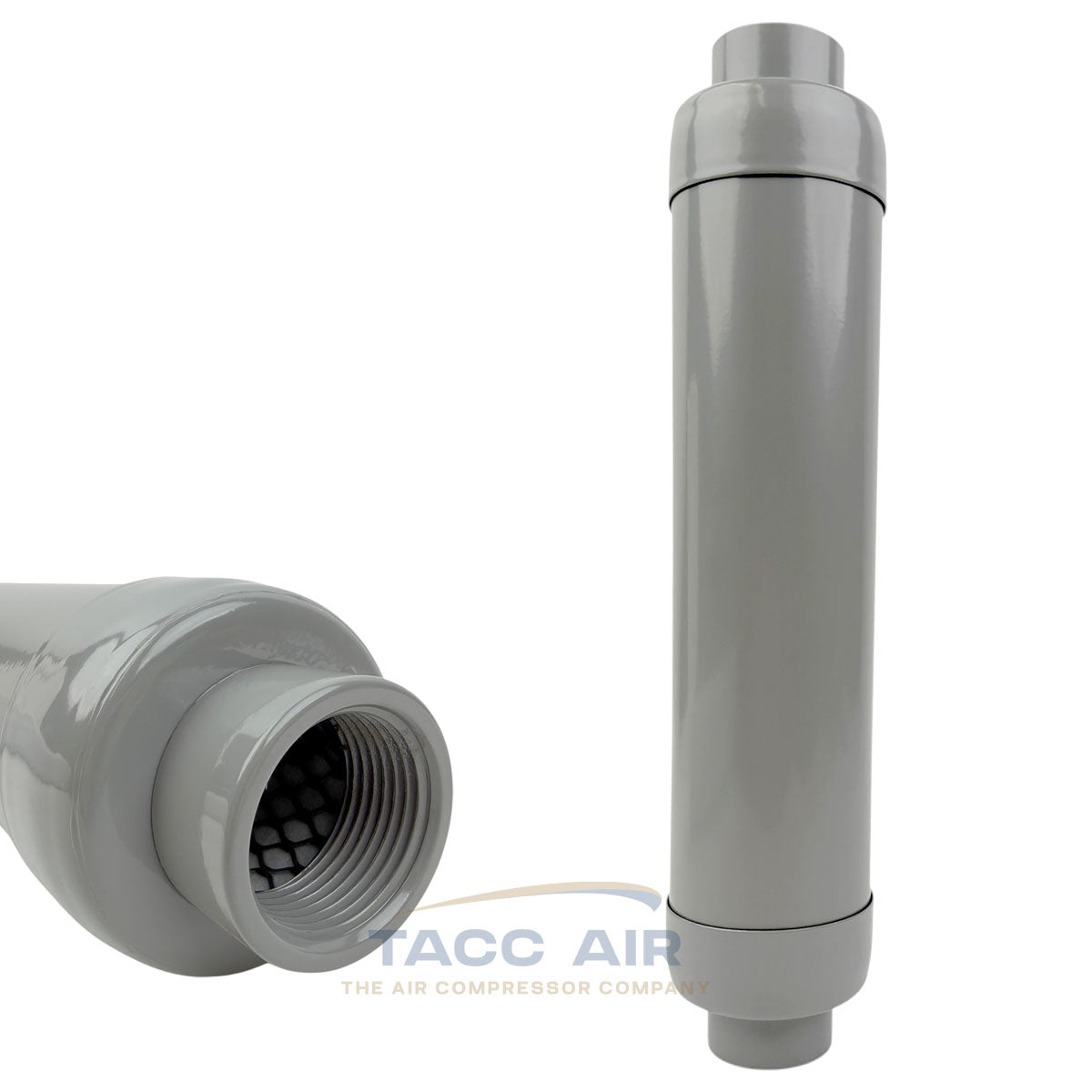

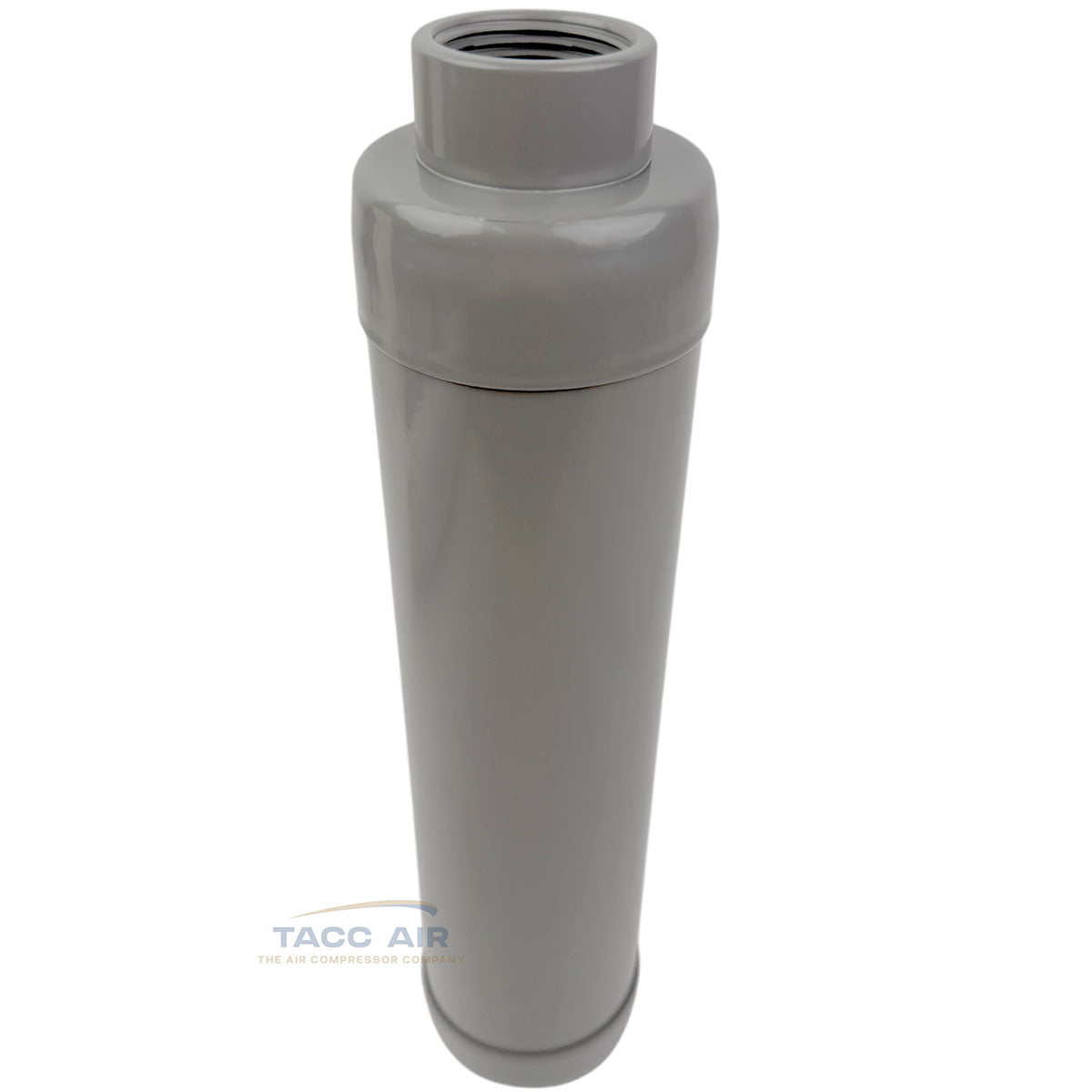

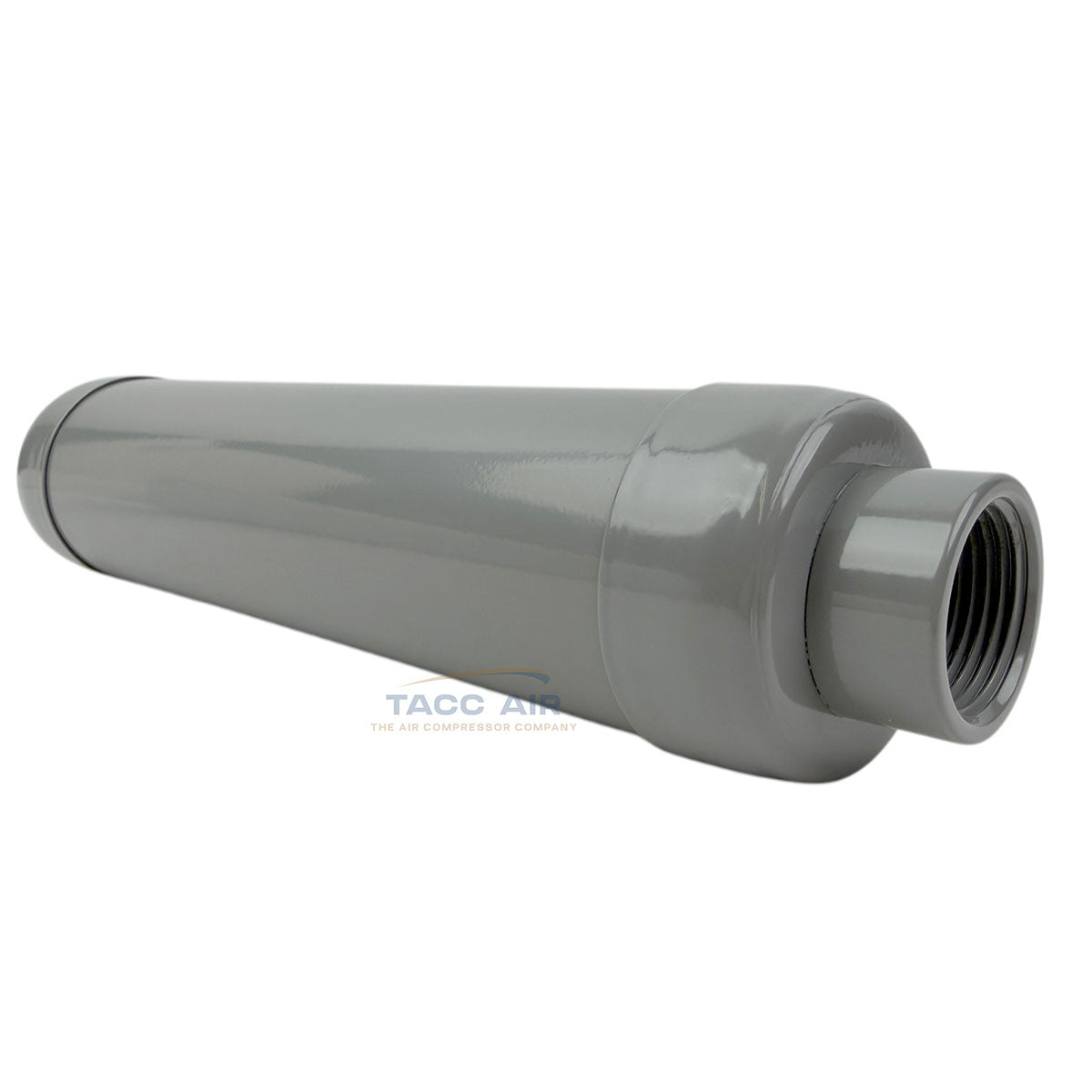

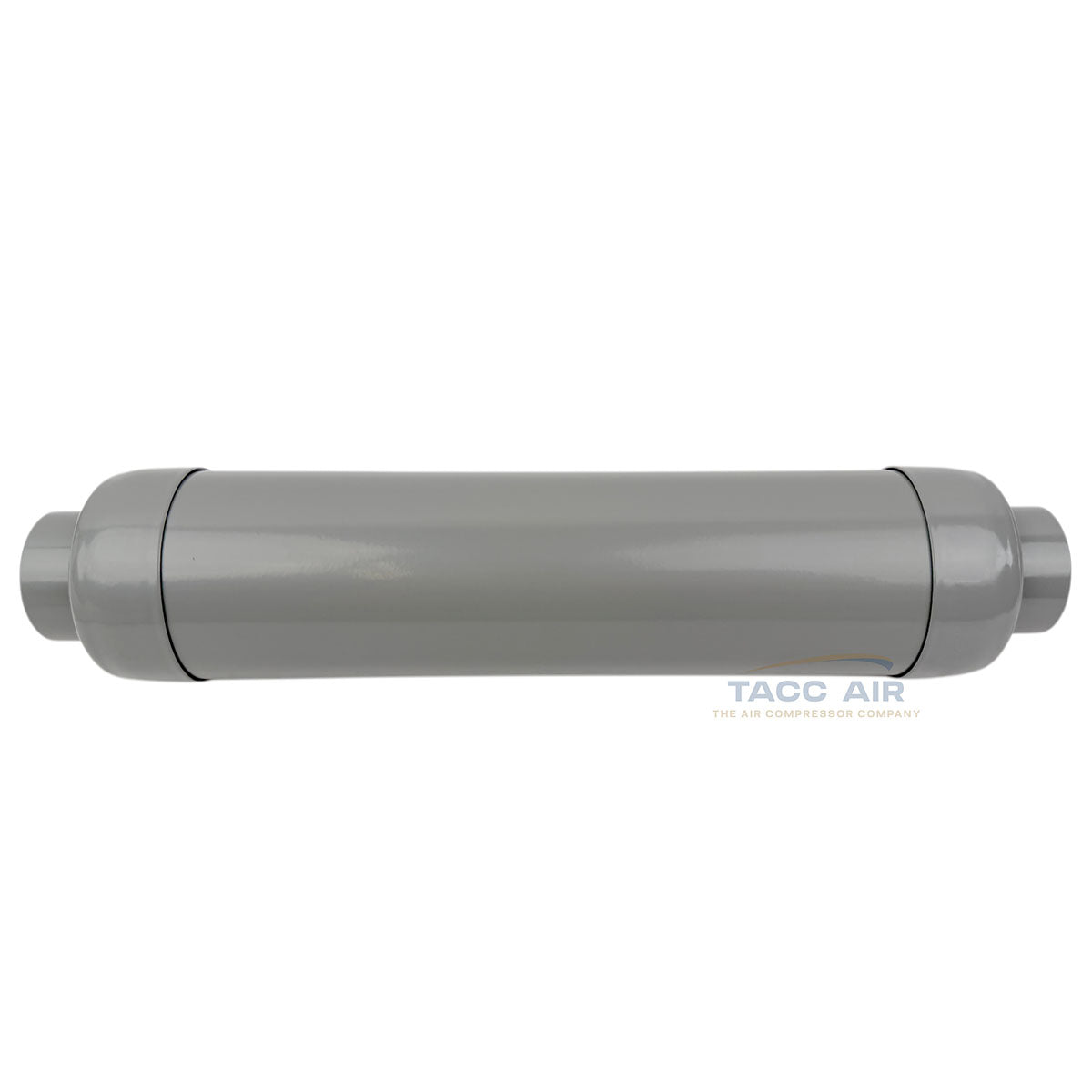

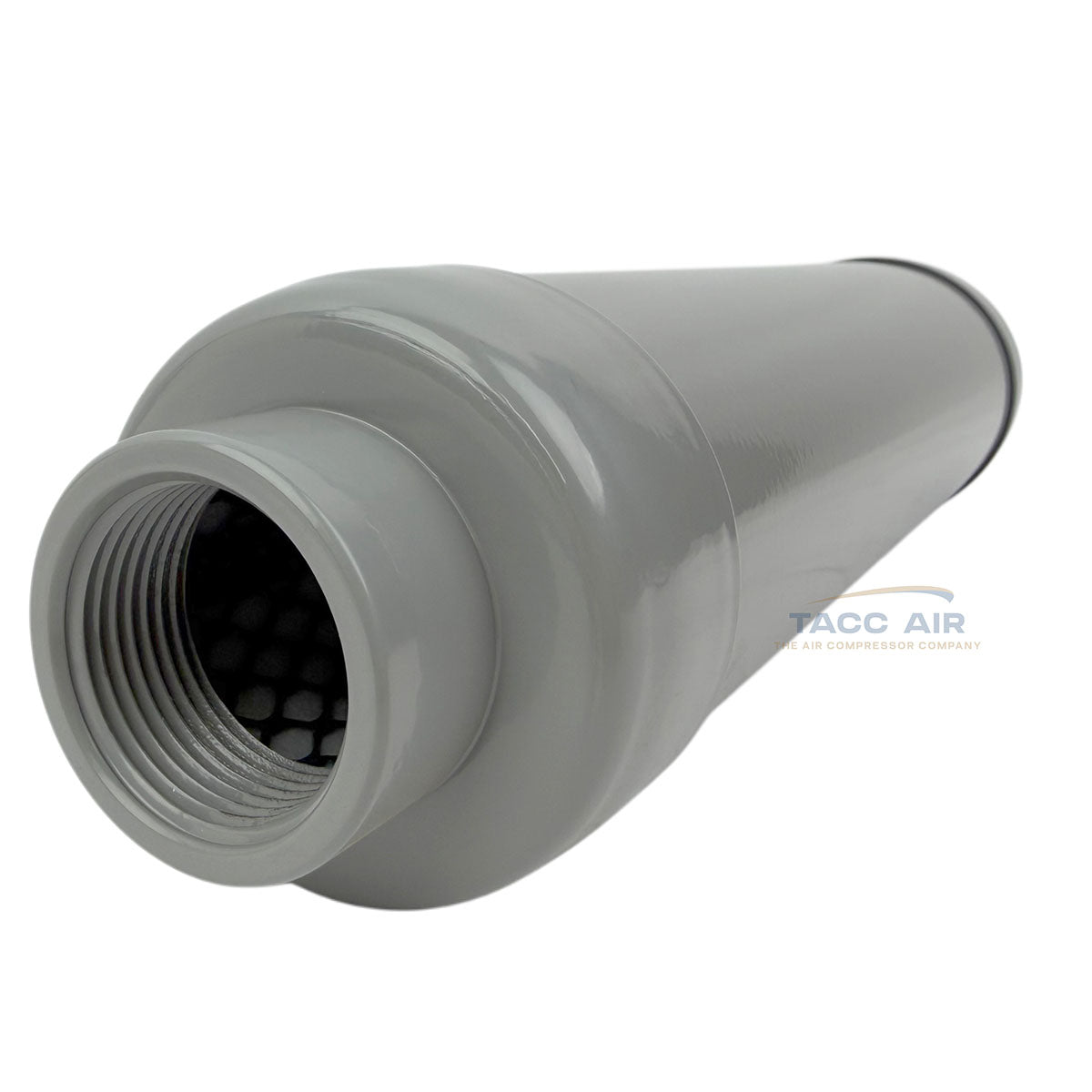

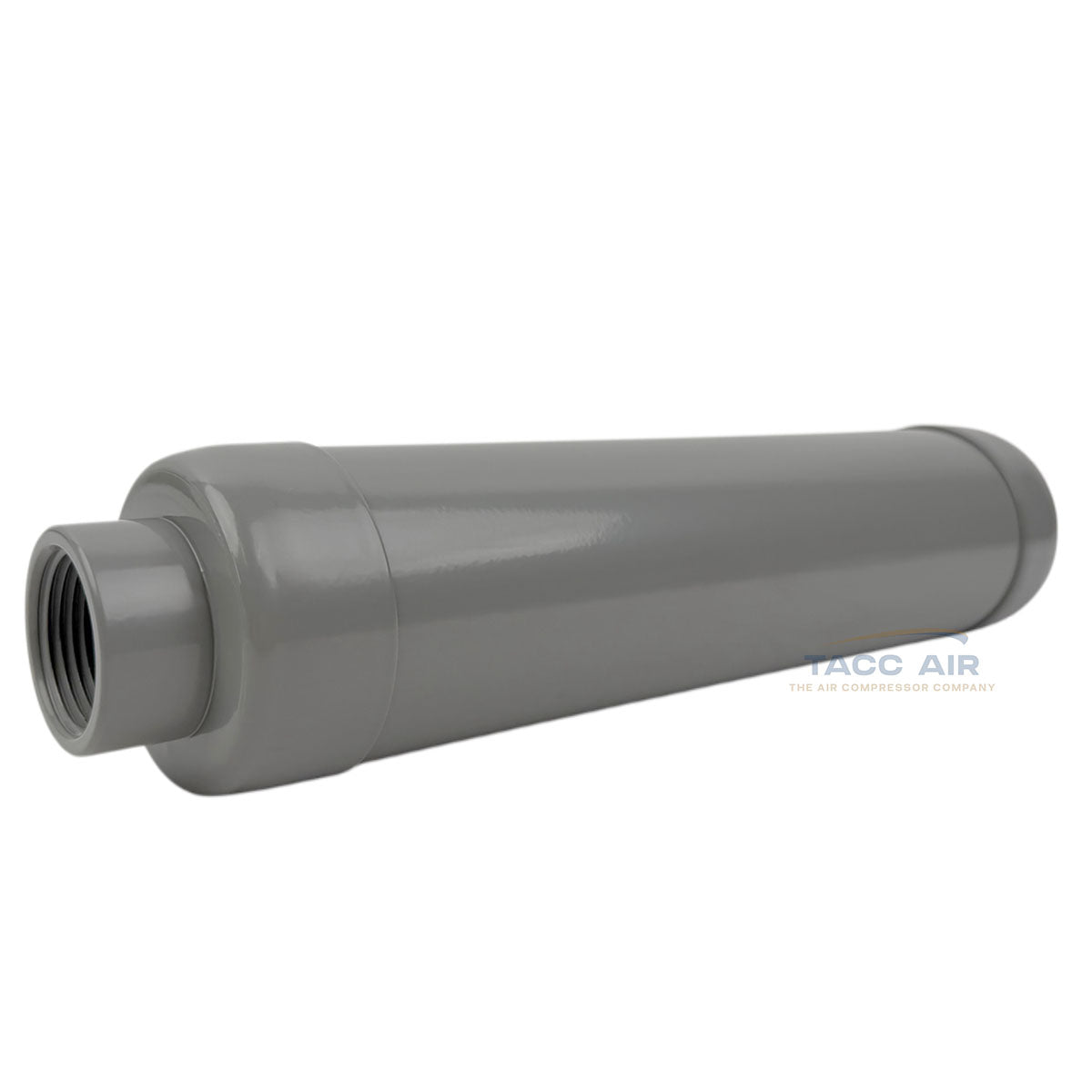

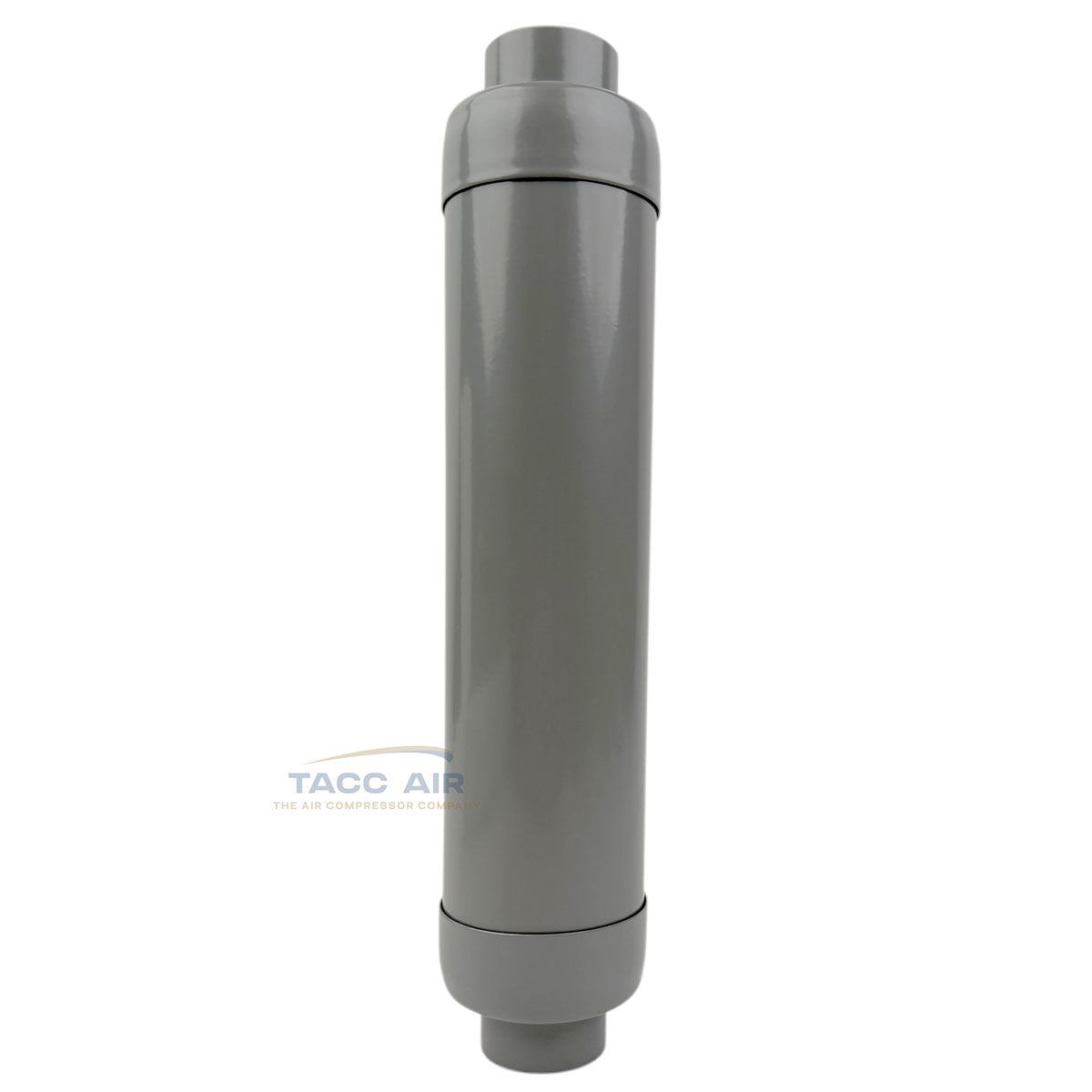

Solberg SLCR100 1" NPT Air Compressor & Equipment Intake or Exhaust Silencer
The Solberg SLCR100 is an absorptive air silencer designed to reduce high-frequency noise generated by air while maintaining minimal pressure drop and efficient airflow. It features an absorptive media pack specifically designed to provide sound attenuation without the use of restrictive internal baffles, tubes, or other components that can unnecessarily restrict airflow.
The SLCR100 is designed for inlet and discharge inline air service and is commonly used with air compressors to quiet intake noise, regenerative blowers, side-channel blowers, centrifugal blowers, vacuum pumps, vacuum lifters, and other air-moving equipment where noise reduction is desired.
The unit features a durable carbon steel construction with a corrosion-resistant gray powder-coat finish, making it a rugged choice for industrial, commercial, and shop applications.
Key Features
- Solberg SLCR100
- 1" NPT female connections
- Absorptive silencer design
- Designed for both inlet and discharge air service
- Helps reduce operating noise from compressors, blowers, and vacuum equipment
- Designed for minimal pressure drop
- No restrictive internal baffles or tubes
- Durable carbon steel construction
- Corrosion-resistant gray powder-coat finish
- Compact design for easy installation
- Made in the USA
Applications
- Air compressor intake and discharge applications
- Regenerative blowers
- Side-channel blowers
- Centrifugal blowers
- Vacuum pumps
- Vacuum lifters
- Industrial air-moving equipment
- Other inline air applications
Specifications
- Manufacturer: Solberg
- Model: SLCR100
- Part Number: SLCR-100
- Connection Size: 1" NPT
- Connection Type: Female NPT / FPT
- Actual Thread Opening: Note: 1" NPT measures approximately 1-1/4" in diameter for reference.
- Silencer Type: Absorptive
- Assembly Max Airflow Rating: 42 SCFM
- Overall Length: 12"
- Overall Diameter: 2-5/8"
- Approximate Weight: 2 lbs
- Construction: Carbon steel
- Finish: Gray corrosion-resistant powder coat
- Maximum Continuous Temperature: 225°F (107°C)
- Installation: Inlet or discharge
- Country of Origin: USA
Important 1" NPT Size Information
Please Note: The SLCR100 uses a 1" NPT female connection. The "1 inch" designation refers to the nominal pipe thread size and does not mean the actual opening is 1 inch.
For reference, the female 1" NPT opening measures approximately 1-1/4" in diameter. This measurement is provided to help customers compare the physical connection size with an existing fitting, compressor, blower, or piping system.
This is a silencer and is not a conventional particulate air filter. The SLCR100 uses absorptive media to reduce noise while maintaining efficient airflow.
Product Overview
The Solberg SLCR100 is a compact, rugged silencer designed for applications where noise reduction and low airflow restriction are important. Its 42 SCFM assembly rating makes it well suited for smaller regenerative blowers, vacuum pumps, compressors, and similar equipment.
The SLCR100 can be installed on either the inlet or discharge side of compatible equipment and provides a simple way to reduce unwanted operating noise without significantly restricting airflow.
